Why Buy A Tankless Water Heater?

Produce Hot Water For The Whole House!

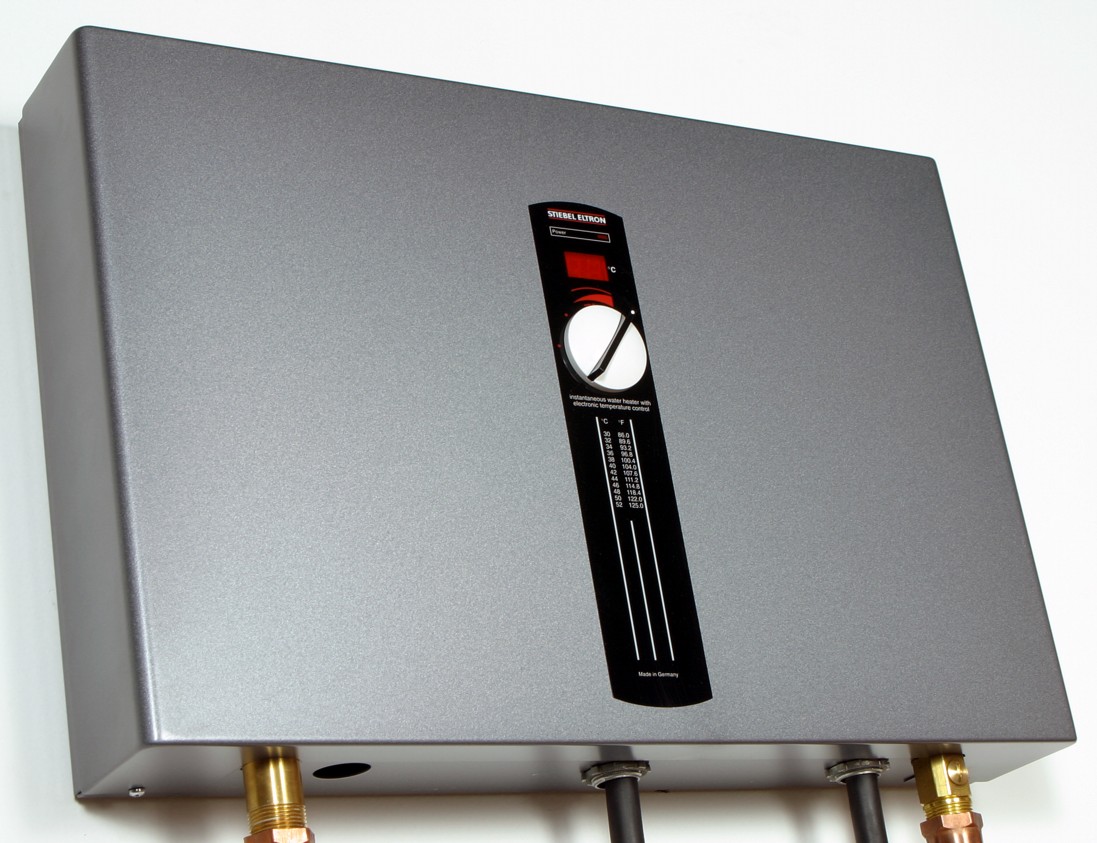

Tempra™ 29 & 36

Unlimited Supply of Hot Water. Keeps heating water instantly as you require. The Tempra™ system completely replaces a conventional tank heater with no disruption to your comfort and hot water needs.

Saves Energy and Reduces Your Electric Bill.
Electric tank type water heaters are subject to stand-by losses which amount to 15 - 20% of the kWH used. Changing to a tankless system results in savings of 15 - 20%.

Sleek Design Saves Space.      The Tempra™ takes up considerably less space than conventional tank type water tanks and saves valuable living space.

Control Temperature Simply by Setting a Dial.      Set the knob on the front cover and enjoy water temperatures between 86°F (30°C) and 125°F (52°C). Change the desired temperature at anytime. Advanced microprocessor technology ensures that the water temperature never deviates from the set point.

Proven Reliability.      STIEBEL ELTRON has an enviable track record of engineering excellence and product quality. The three years parts warranty is unique in the industry. You can depend on the Tempra™ for many years to come.

Seismic Proof Construction.      The Tempra™ is a tankless water heater system, and is thereby not subject to seismic code. There is no need for preventative construction, as required when using a tank type water heater.

Tempra™ 12, 20 & 24

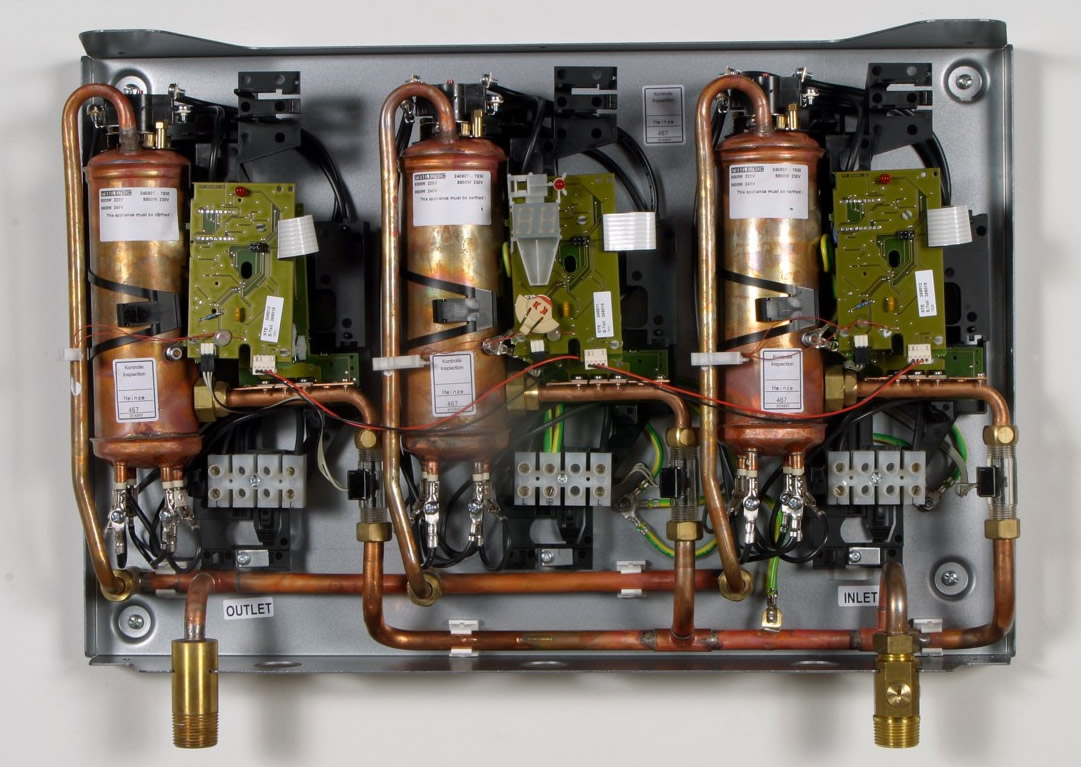

Take The Cover Off.

We have done our homework. As an international leader in the tankless electric water heating industry, STIEBEL ELTRON is proud to have pioneered this technology.

The company’s German engineering and manufacturing tradition of excellence means that you can depend on its performance for many years to come.

Superior, Reliable Performance.

The Tempra™ has several temperature and flow sensors which feed their readings into the unit’s proprietary microprocessor control. Heating elements are engaged in stages, achieving the temperature you desire. The Tempra™ continually monitors the water temperature it produces.

Choose the unit that is right for your needs from the information below:

Tempra™ Technical Data

Model		Tempra™ 12		Tempra™ 20		Tempra™ 24		Tempra™ 29		Tempra™ 36
Phase		1		1		1		1		1
Voltage	V	208	240	208	240	208	240	208	240	208	240
Wattage	kW	9	12	14.4	19.2	18	24	21.6	28.8	27	36
Amperage	A	44	50	70	80	88	100	105	120	132	150
Min. required circuit breaker size	A	50	60	2x40	2x50	2x50	2x60	3x40	3x50	3x50	3x60
Recommended wire size	AWG COPPER	8	8	2x8	2x8	2x8	2x8	3x8	3x8	3x8	3x8
Maximum temperature increase	@1.50 GPM	41	54	66	88	82	92	92	92	92	92
above ambient water temp.	@2.25 GPM	27	36	44	58	54	73	66	87	82	92
	@3.00 GPM	20	27	33	44	41	54	49	66	61	82
	@4.50 GPM	-	-	22	29	27	37	33	44	41	55
Min. water flow to activate unit	GPM / Lmin	0.29 / 1.1		0.58 / 2.2		0.58 / 2.2		0.87 / 3.3		0.87 / 3.3
Weight	Lb / Kg	15/6.8		21/9.5		18/8.1		24.25/11		24.25/11
Nominal water volume	Gal / L	0.13/0.5		0.26/1.0		0.26/1.0		0.39/1.5		0.39/1.5
Width	inch / cm	14 1/2/ 36.7		20 3/4 / 55.2		14 1/2 / 36.7		20 3/4 / 55.2		20 3/4 / 55.2
Height	inch / cm	14 1/2 / 36.7
Depth	inch / cm	4 5/8 / 11.6
Working pressure	PSI / BAR	150 / 10
Tested to pressure	PSI / BAR	300 / 20
Water connections		3 / 4" NPT

Three Year Limited Warranty
