Product ID: SBE-Tempra-36
Category: Tankless Hot Water Heaters

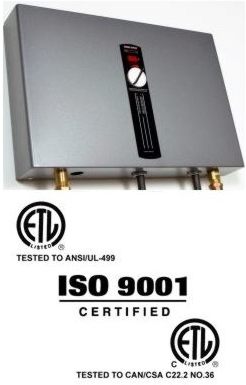

Stiebel Eltron Tempra™ 36
Electric Tankless Water Heater - Whole House
Description: The Stiebel Eltron Tempra™ 36 is the
largest in a series of whole house water heaters, designed to
suit individual situations and needs.
Usage:
For use in homes or condos with 3 - 4 Bathrooms.
If you have a Jacuzzi tub or body spray shower, you may need
this and a point of use unit. If your home is larger than
described, you may 2 units chained together. Please call toll
free 888-855-3545 for questions or help in deciding.
This unit is compatible with most water ambient water
temperatures throughout the lower 48 States.
What is the temperature of your incoming water? This will
help determine which unit you will work best for you. It is
called the ambient water temperature.
- You will need a meat thermometer or candy thermometer or
any thermometer that will measure down to zero degrees
Fahrenheit.
- Make sure you are not running any appliances such as
dishwasher or clothes washer.
- Go to your kitchen sink and turn on the the cold water and
let it run about a minute. Hold the end of the thermometer
into the cold water for another minute. This will tell you
what the ambient temperature of the water coming into your
house is.
In the northern climates of the US, it is normal for the
ambient temperature of the water to be between 42 and 54
degrees all year long. In the lower southern states or coastal
states it can be as much as 70 degrees.
Set-Up Requirements - What you must have available to
install and use the Tempra™ 36:
| Household Applications: |
| Single Phase |
| 240 Volts |
| 36 kW (kilowatts) |
| Minimum 150 amp service |
Minimum required circuit breaker:
3 - 60 amp breakers |
| Building wiring: 3 - 8 gage copper wire |
Maximum temperature increase
above ambient water temperature:
@ 1.50 gallons per minute:
92 degrees
@ 2.25 gallons per minute:
92 degrees
@ 3.00 gallons per minute:
82 degrees
@4.50 gallons per minute:
55 degrees |
Minimum water flow to activate unit:
0.87 gallons per minute,
3.3 liter per minute |
| Unit Weight: 24.25 lbs / 11 kilograms |
Nominal Water Volume (water inside the unit
at any one time):
0.39 gallons / 1.5 liters |
Dimensions:
20 3/4" w x 14 1/2" h x 4 5/8" d |
Working pressure:
150 psi / 10 BAR |
Tested to pressure:
300 psi / 20 BAR |
| Water Connections: 3/4" NPT |
| |
| Commercial Applications: |
| Single Phase |
| 208 Volts |
| 27 kW |
| Minimum 132 amp service |
Minimum required circuit breaker:
3 - 50 amp breakers |
| Building wiring: 3 - 8 gage copper wire |
Maximum temperature increase
above ambient water temperature:
@ 1.50 gallons per minute:
92 degrees
@ 2.25 gallons per minute:
82 degrees
@ 3.00 gallons per minute:
61 degrees
@4.50 gallons per minute:
41 degrees |
Minimum water flow to activate unit:
0.87 gallons per minute,
3.3 liter per minute |
| Unit Weight: 24.25 lbs / 11 kilograms |
Nominal Water Volume (water inside the unit
at any one time):
0.39 gallons / 1.5 liters |
Dimensions:
20 3/4" w x 14 1/2" h x 4 5/8" d |
Working pressure:
150 psi / 10 BAR |
Tested to pressure:
300 psi / 20 BAR |
| Water Connections: 3/4" NPT |
Three Year Limited Warranty!
CAUTION: The voltage, amperage,
and circuit breaker specifications must be met for this heater
to function. Please make sure all requirements are met before
purchasing this heater. If you have any questions about these
requirements, please call toll free 888-855-3545.
Installation Instructions for Tempra Units
Specifications for all Tempra Units
Click here to View Sizing Chart
Why buy a tankless water heater
Living with a tankless hot water heater
Click here
for Flex Connectors
Free Shipping
(Lower 48 States Only)
Price: $849.00
|
